EGS Moulded grilles for air extraction
Description
Moulded grilles for air extraction or supply made of grey painted steel (similar to RAL 9006).
Use
EGS series grilles have been designed to be used in air conditioning, ventilation and heating systems. They are used for air supply and exhaust in large areas, car parks or domestic installations.
Operating data
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
dB(A): noise level

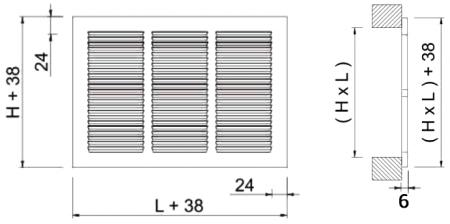

All dimensions are expressed in mm
|
model LxH |
effective cross-section |
flow rate m³/h | |||
| m2 | Vk 2 m/s | Vk 3 m/s | Vk 4 m/s | Vk 5 m/s | |
| 200x100 | 0,014 | 100 | 150 | 200 | 250 |
| 300x100 | 0,021 | 151 | 227 | 302 | 378 |
| 400x100 | 0,029 | 209 | 313 | 418 | 522 |
| 150x150 | 0,017 | 61 | 122 | 183 | 245 |
| 300x150 | 0,033 | 238 | 356 | 475 | 594 |
| 400x150 | 0,044 | 317 | 475 | 633 | 792 |
| 200x200 | 0,029 | 209 | 313 | 418 | 522 |
| 300x200 | 0,043 | 310 | 465 | 620 | 774 |
| 400x200 | 0,058 | 418 | 626 | 835 | 1044 |
| 300x300 | 0,065 | 468 | 702 | 936 | 1170 |
| 400x300 | 0,087 | 626 | 940 | 1253 | 1566 |
| Pa | 3 | 6 | 10 | 15 | |
| dB(A) | 20/25 | 25/30 | 30/35 | 35/40 | |
