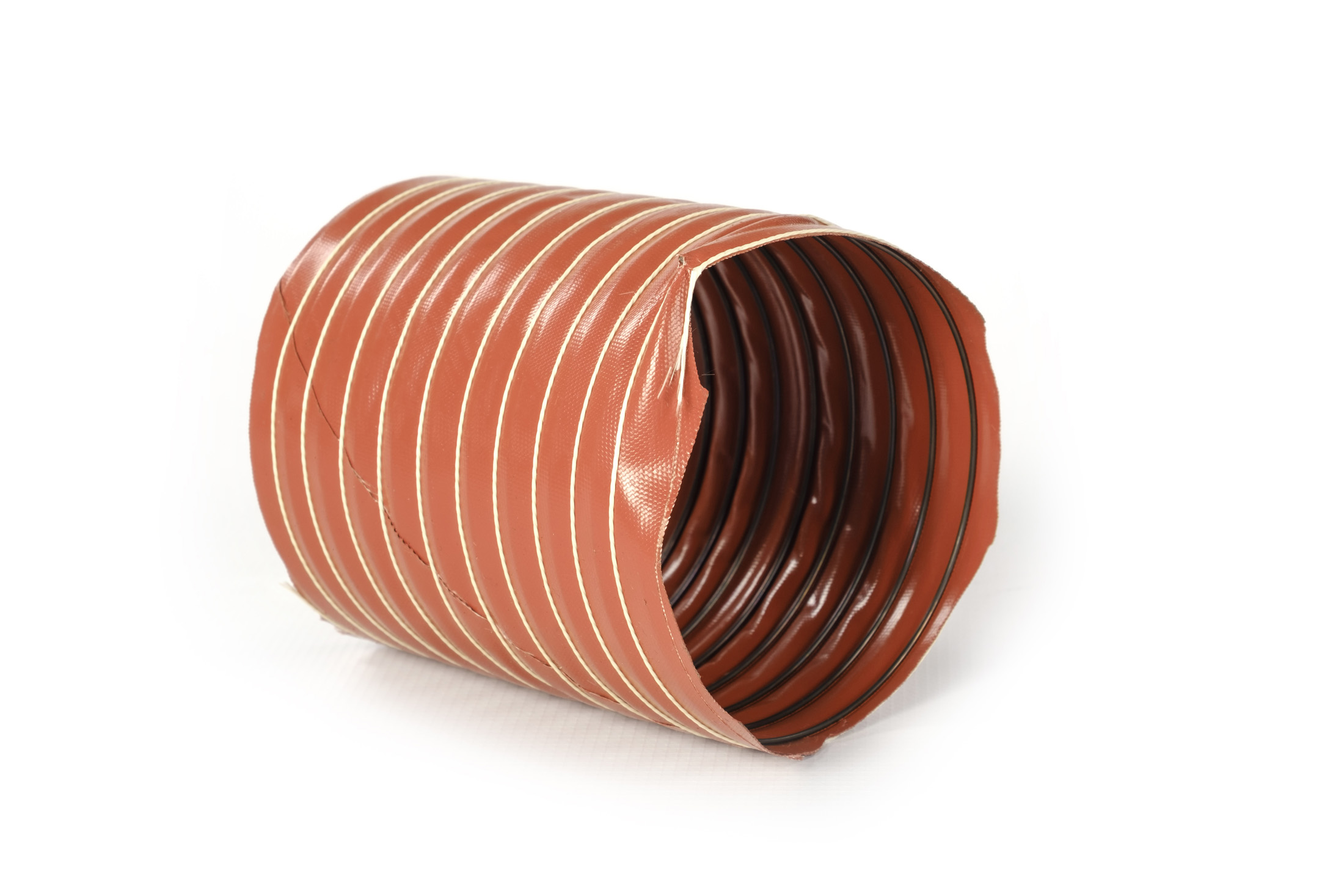

ETP4E Flexible ducts for high temperatures (300°C)
Description :
Flexible duct made of silicone coated fibreglass fabric, inner and visible copper plated steel wire helix and external fibreglass string.
Characteristics :
Colour : dark red
External string : white
Temperature range : from -60°C to +270°C (+300°C peaks)
Axial compressibility : 30%
Size:
Standard 4 meters
Use :
Suction, extraction and blowing of air even with dusty particles in the presence high temperatures.
Price list
The length of the hose should to be considered in a extended position and at environment temperature (16/18°C - tolerance ±2%)
| internal ø | ETP4E | internal ø | ETP4E | internal ø. | ETP4E | internal ø | ETP4E | internal ø | ETP4E |
| euro | euro | euro | euro | euro | |||||
| 25 | 36,51 | 57 | 44,41 | 89 | 61,24 | 140 | 92,13 | 254 | 178,74 |
| 32 | 36,74 | 60 | 45,68 | 95 | 64,16 | 152 | 101,22 | 305 | 209,39 |
| 35 | 37,08 | 63 | 47,45 | 102 | 69,83 | 165 | 109,84 | ||
| 38 | 37,90 | 70 | 50,13 | 114 | 76,32 | 180 | 122,01 | ||
| 44 | 39,33 | 76 | 54,79 | 121 | 82,46 | 203 | 141,25 | ||
| 51 | 41,33 | 83 | 57,43 | 127 | 85,74 | 229 | 160,37 |
