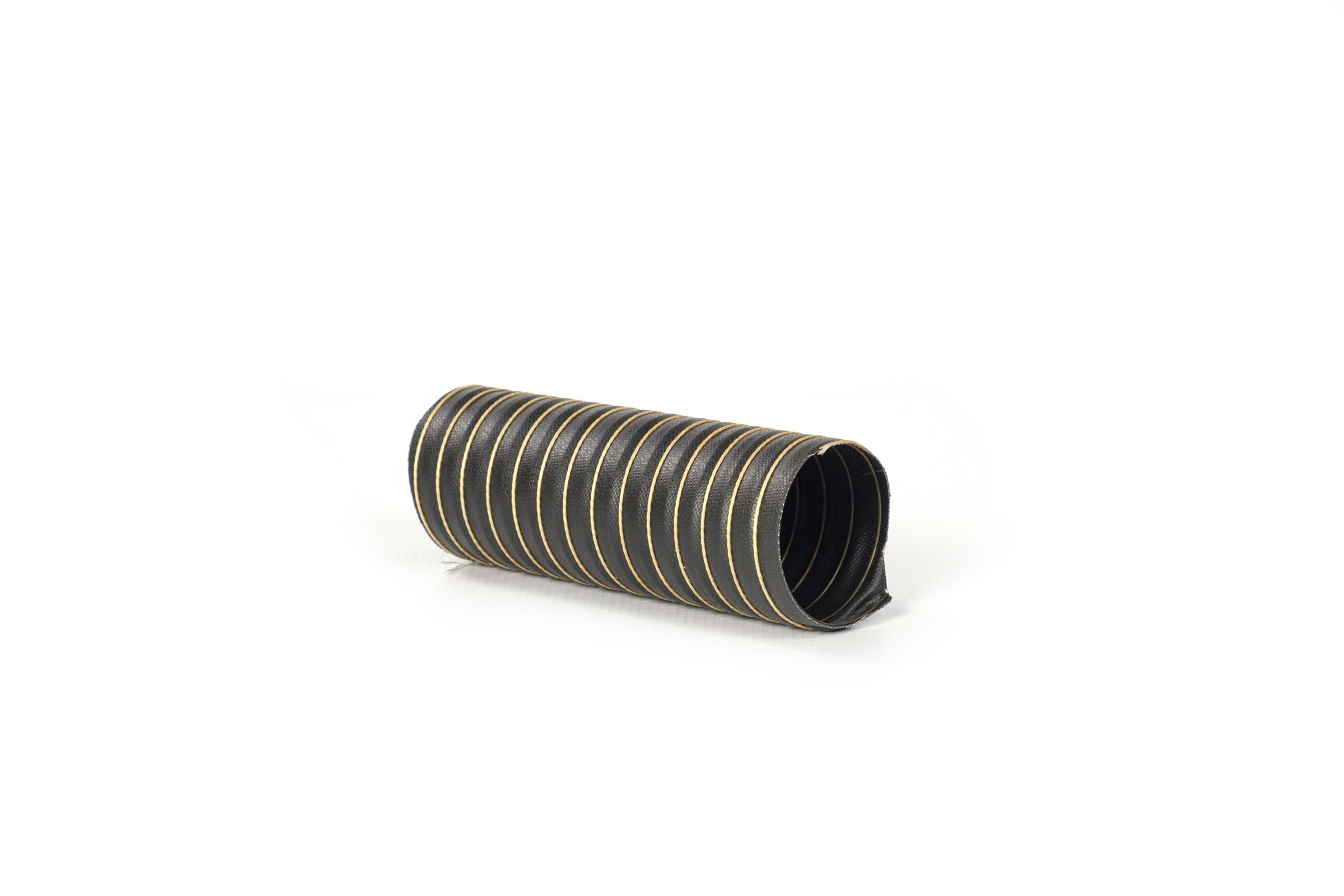

ETP8 Flexible duct for high temperatures (150°C)

Description :

Flexible hoses made of fiberglass fabric coated with one layer neoprene, internal and visible spiral in copper-plated steel, external fiberglass rope.

Characteristics :

Colour : black
Diameters : from 25 to 305 mm
Temperature range: from -55°C to +130°C (+ 150°C peaks)
Axial compressibility : 30%

Size:

Standard 4 meters

Use :

- Industrial aspiration and ventilation
- Cooling of electronic equipment and ship machine rooms
- Diesel air aspiration
- Motor vehicle heating

Reaction to fire:

Class M1 (UNE 23723-90) CL V-O (UL-94)

Information and price list
Documents
Recommended Products
Information request

Price list

The length of the hose should to be considered in a extended position and at environment temperature (16/18°C - tolerance ±2%)

internal ø	ETP8	internal ø	ETP8	internal ø	ETP8	internal ø	ETP8	internal ø	ETP8
	euro		euro		euro		euro		euro
25	26,88	57	33,19	89	44,27	140	63,83	254	134,38
32	25,78	60	34,54	95	48,67	152	71,18	305	152,53
35	26,08	63	35,51	102	49,27	165	82,93
38	26,77	70	37,48	114	53,47	180	93,69
44	28,76	76	39,20	121	57,51	203	105,39
51	31,61	83	42,48	127	59,55	229	120,22

ETP8
