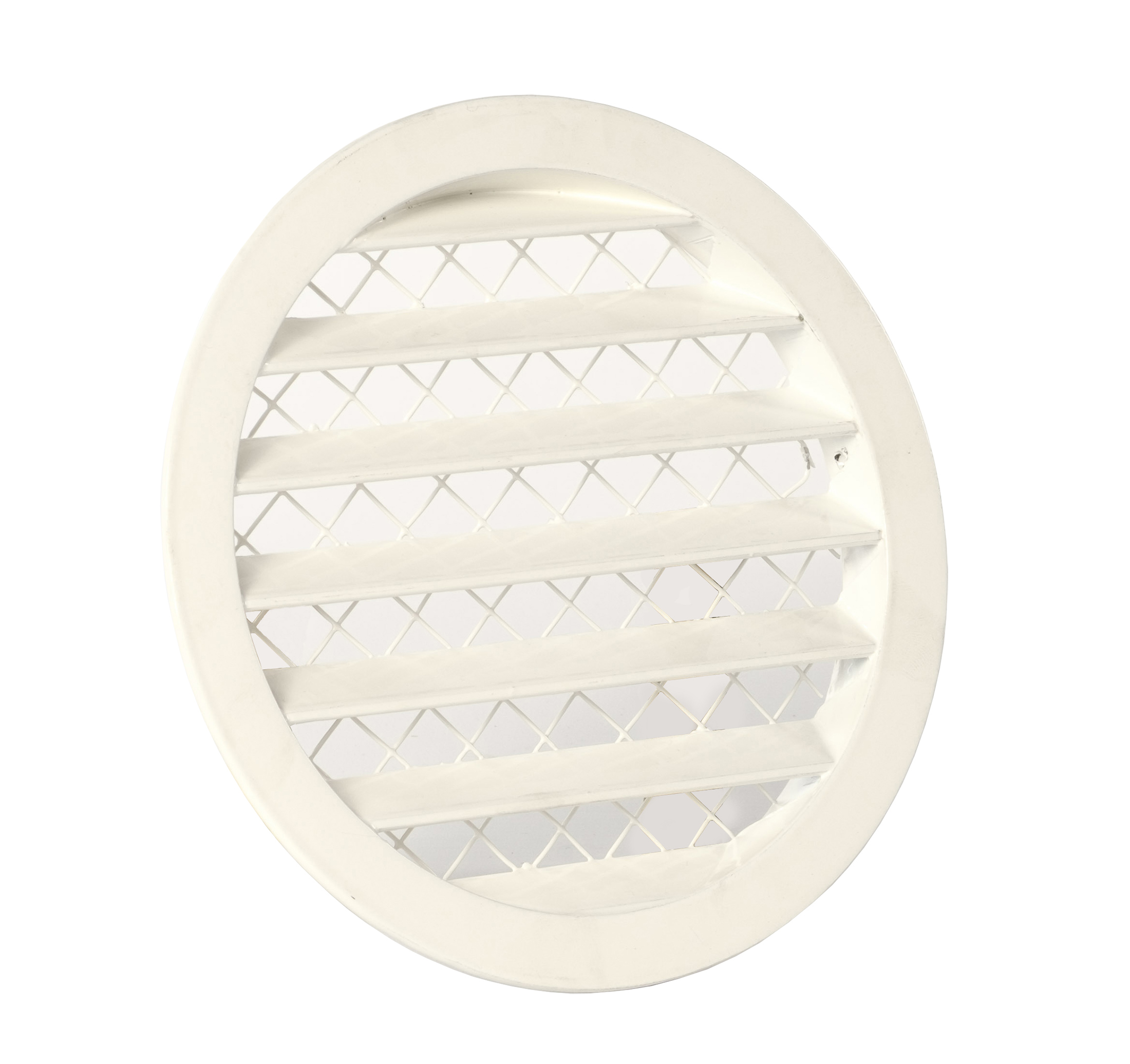

EAG-AL White painted aluminium grille with mesh
Description :
Aluminium grille with mesh for both supply and return of air.
Available white painted or aluminium.

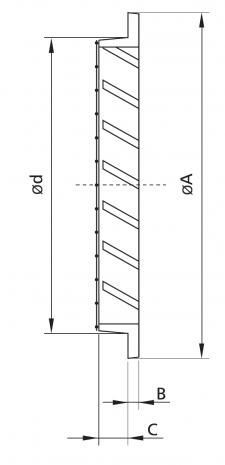

Dimensions
| Model | ød (mm) | øA (mm) | B (mm) | C (mm) | Effective section (m2) | Weight (kg) |
| EAG-AL-100 | 100 | 125 | 5,0 | 15 | 0,0044 | 0,16 |
| EAG-AL-125 | 125 | 150 | 5,0 | 15 | 0,0068 | 0,27 |
| EAG-AL-150 | 150 | 175 | 5,0 | 15 | 0,0092 | 0,32 |
| EAG-AL-160 | 160 | 185 | 5,0 | 15 | 0,0120 | 0,37 |
| EAG-AL-200 | 200 | 225 | 5,0 | 15 | 0,0200 | 0,65 |
| EAG-AL-250 | 250 | 275 | 5,0 | 15 | 0,0310 | 1,12 |
| EAG-AL-315 | 315 | 350 | 7,0 | 15 | 0,0470 | 1,90 |
| EAG-AL-400 | 400 | 430 | 7,0 | 50 | 0,0750 | 3,00 |
