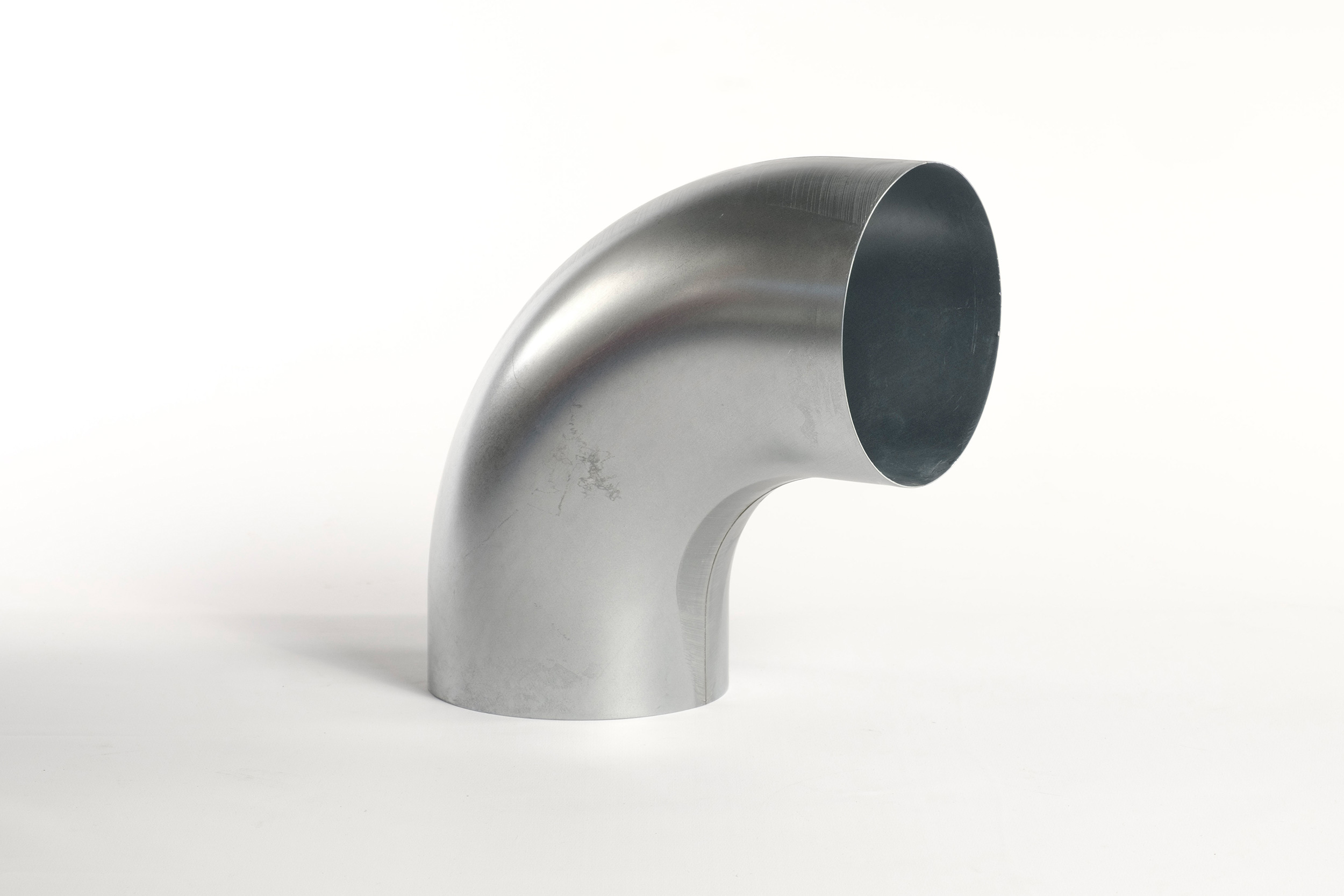

BS Pressed bends and sectoral bends

Description

Pressed and seam welded bend in galvanized sheet and aisi 316.

Characteristics

Sheet thickness :
- diameters 80-300 mm t = 0,6 mm;
- diameter 315 mm t = 0,7 mm;
- stainless steel AISI 316 t = 0,7 mm.

Spigot lenght :
- diameters 80-250 mm = 40 mm;
- diameters 280-315 mm = 60 mm.

Information and price list
Documents
Recommended Products
Information request

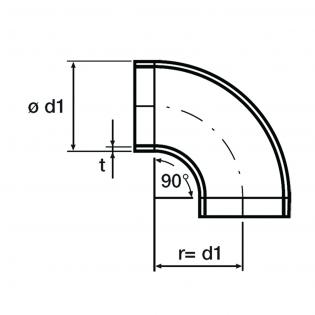

Dimensions and price list

Dimensions are expressed in mm.

The diameter 200 mm bend is not in conformity with the drawing.

Item normally available from stock

model d1	bends BS15 BS30 BS45				bends BS60 BS90			galvanized welded airtight bends with seal BSG90
model d1	galvanized BS15	galvanized BS30	galvanized BS45	stainless steel AISI 316 BS45	galvanized BS60	galvanized BS90	stainless steel AISI 316 BS90	galvanized welded airtight bends with seal BSG90
	euro	euro	euro	euro	euro	euro	euro	euro
80	10,90	8,45	9,50	67,15	10,37	10,64	77,75	15,78
100	12,82	9,94	10,64	77,75	11,89	12,32	90,14	14,75
120	a.r.	a.r.	20,30	-	23,18	28,07
125	15,98	12,38	12,87	97,21	13,68	15,91	116,63	18,13
140	a.r.	a.r.	17,53		18,19	24,27
150	19,75	15,31	15,91	116,63	20,30	21,23	155,51	24,04
160	20,78	16,10	16,61		22,09	23,07		25,94
180	23,79	18,44	21,23		26,76	28,99
200	27,91	21,63	23,18		30,24	33,93		36,45
250	42,86	33,21	35,23		47,17	54,72		62,15
280	a.r.	a.r.	35,99		53,58	60,37
300	48,89	37,89	39,03		59,28	66,61		74,56
315	54,86	42,51	45,82		64,11	69,27		78,22

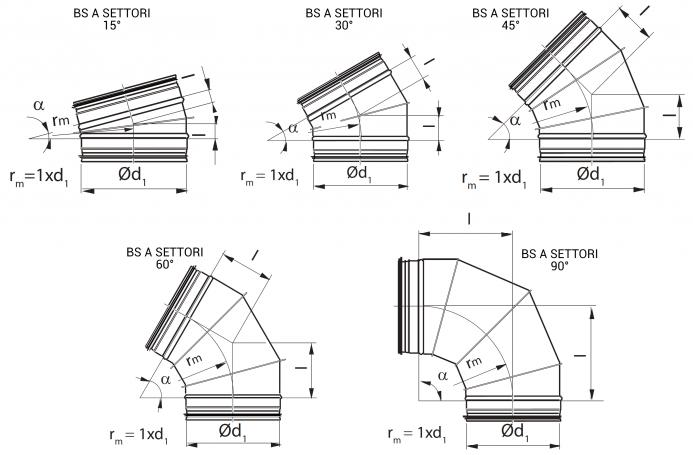

Sectoral bends dimensions

Ød₁	BS A SETTORI 15°		Euro	BS A SETTORI 30°		Euro	BS A SETTORI 45°		Euro	BS A SETTORI 60°		Euro	BS A SETTORI 90°		Euro
Ød₁	l	kg		l	kg		l	kg		l	kg		l	kg
mm	mm	kg		mm	kg		mm	kg		mm	kg		mm	kg
355	47	1,41	a.r.	95	1,70	a.r.	147	2,26	a.r.	205	2,80	a.r.	355	3,75	a.r.
400	53	1,70	a.r.	107	2,27	a.r.	166	2,96	a.r.	231	3,47	a.r.	400	5,64	a.r.
450	59	2,20	a.r.	121	3,00	a.r.	186	4,00	a.r.	260	4,70	a.r.	450	7,00	a.r.
500	66	2,65	a.r.	134	3,70	a.r.	207	4,90	a.r.	289	6,00	a.r.	500	8,20	a.r.
