MS Saddles

Description

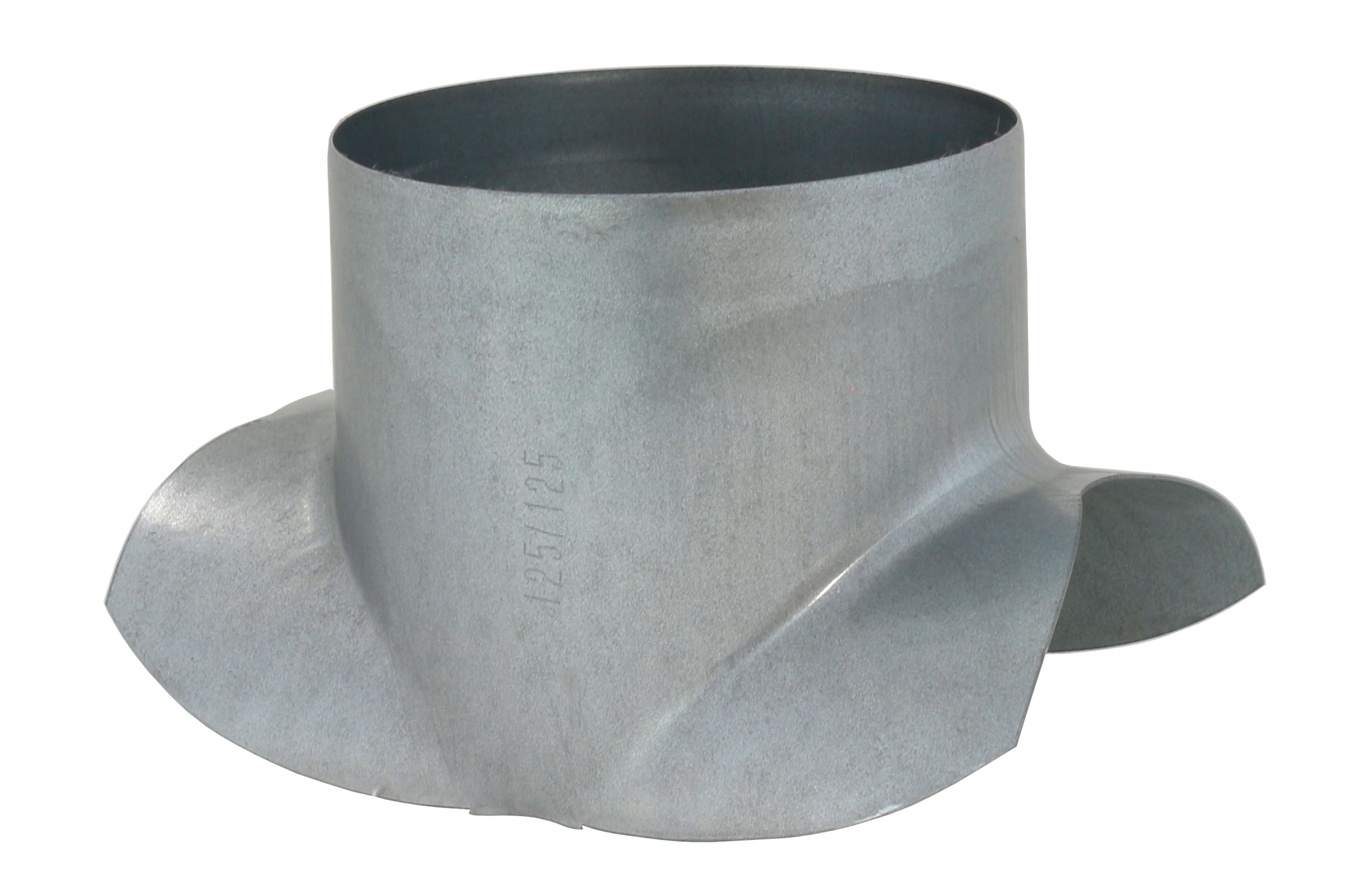

Galvanized steel 90° moulded saddle connector.

Characteristics

Sheet thickness :
- diameters 80-250 mm t = 0,7 mm.

Spigot lenght :
- diameter 80 mm = 25 mm;
- diameters 100-250 mm = 40 mm;
- diameters 280-315 mm = 60 mm.

Information and price list
Documents
Recommended Products
Information request

Dimensions and price list

Dimensions are expressed in mm.

Item normally available from stock

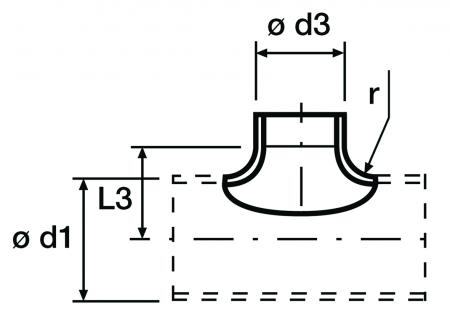

model d1	d3	L3	r	saddle MS	model d1	d3	L3	r	saddle MS
				euro					euro
100	80	60	10	5,88	300	150	170	20	a.r.
140	80	80	10	a.r.	315	150	175	20	10,98
150	80	85	10	5,88	180	160	110	20	a.r.
160	80	90	10	5,60	200	160	120	20	11,25
125	100	75	15	7,15	250	160	145	20	11,25
140	100	85	15	a.r.	280	160	160	20	a.r.
150	100	90	15	7,15	300	160	170	20	48,40
160	100	95	15	6,33	315	160	175	20	10,98
140	125	85	15	a.r.	250	180	150	25	a.r.
150	125	90	15	8,31	280	180	165	25	a.r.
160	125	95	15	7,50	300	180	175	25	a.r.
180	125	105	15	a.r.	315	180	180	25	a.r.
200	125	115	15	8,31	250	200	150	25	14,30
180	150	110	20	a.r.	280	200	165	25	a.r.
200	150	120	20	10,92	300	200	175	25	62,23
250	150	145	20	10,92	315	200	180	25	14,91
280	150	160	20	a.r.
